Product description

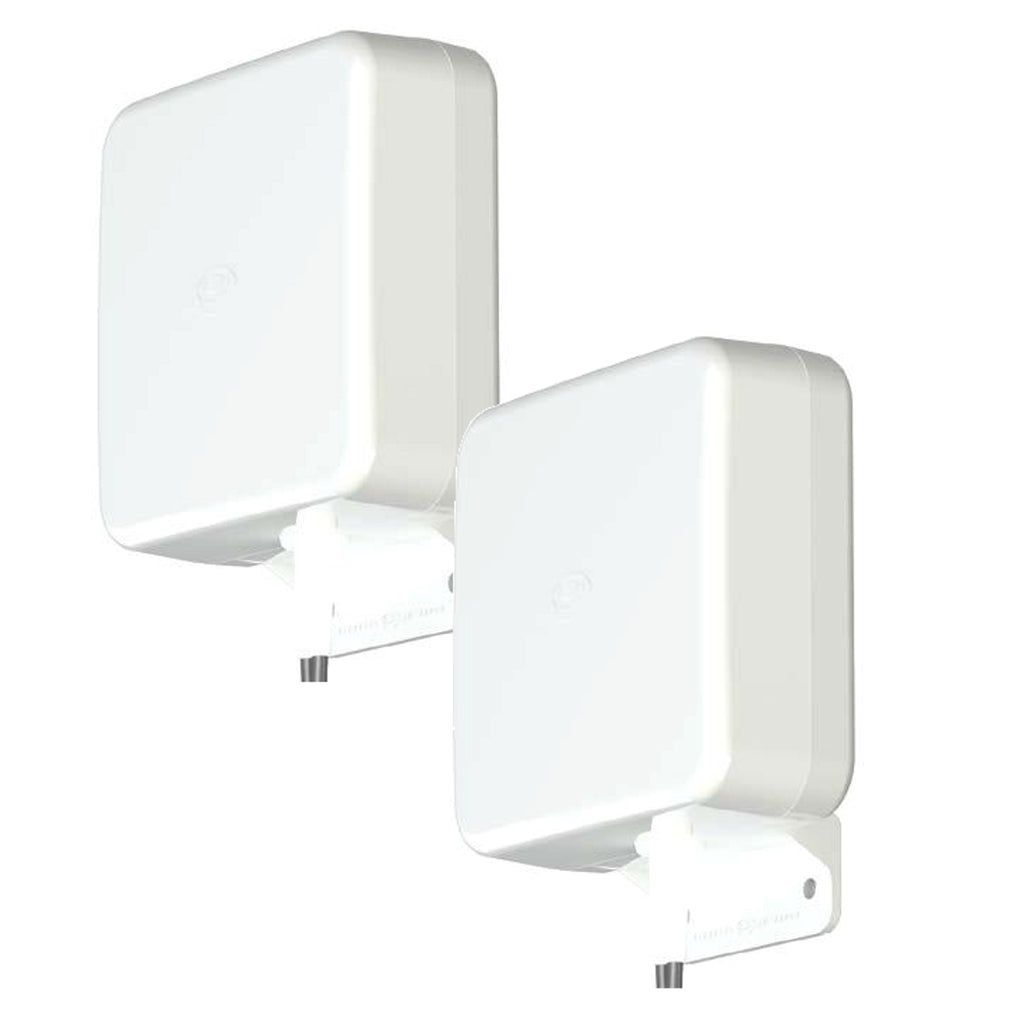

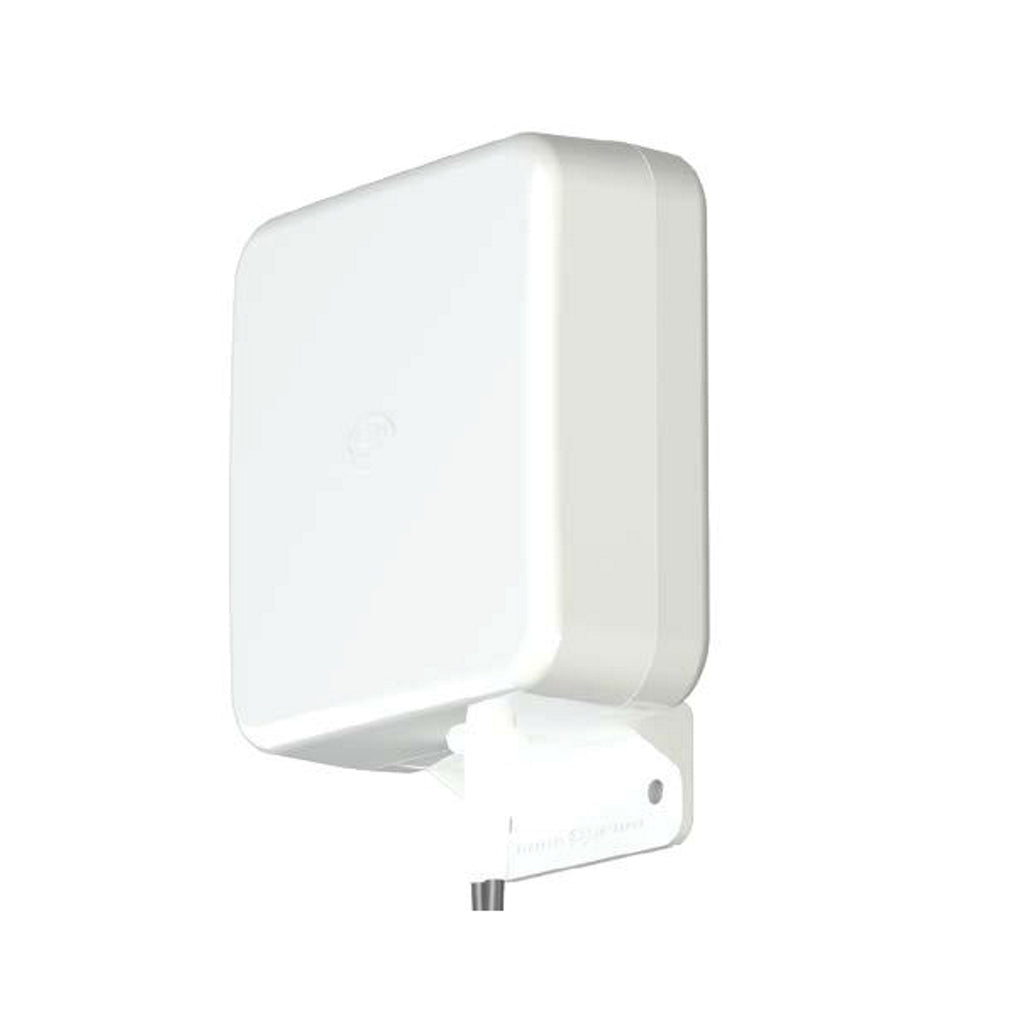

Wittenberg LTE antenna, 2x2 MIMO directional antenna, various versions - WB23 or WB24
These powerful 2x2 MIMO directional antennas from Wittenberg serve to improve the LTE signal of a stationary LTE router. They are suitable for 2G, 3G and 4G networks (LTE, UMTS, HSDPA, GPRS, EDGE). Two separate broadband elements in a single housing allow operation in MIMO and diversity mode.
These robust LTE MIMO antennas are suitable for wall or mast mounting and are both weatherproof and UV-resistant - the appropriate mounts are of course included in the scope of delivery. A 5-metre, double-shielded (low loss) twin cable with high-quality connection plugs (SMA connector - male) allows easy installation and cable routing. No direct line of sight to your provider's transmitter mast is required.
Technical details:
- Frequencies: 698-960 MHz, 1710-2700 MHz
- Gain (optional): WB23: @698-960 MHz 2 dBi; @1710-2170 MHz 5 dBi; @2396-2700 MHz 4 dBi.
WB24: @698-960 MHz 6 dBi; @1710-2170 MHz 9 dBi; @2396-2700 MHz 6 dBi
- Material: UV-resistant ASA plastic
- Colour: RAL9010 (pure white)
